Poultry Farm Food Fish Pellet Machine

1.0 Sets
MOQ
Poultry Farm Food Fish Pellet Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops
Showroom Location: None
Condition: New
Type: Feed Pellet Machine
Voltage: 380v
Dimension(L*W*H): 19X3X3M
Weight: 5800 Kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 5 Years
Core Components: PLC, Gear, Gearbox, Motor, Bearing, Engine, Pressure Vessel, Pump
Max. Capacity: 1ton/h
Application: Poultry Farm
Raw Material: Bone Powder
Function: Aniaml Feed Puffed Pellet Machine
Color: White
Capacity: 300-500kg/h
Material: Stainless
Motor: Chinese Brand
Processing Types: Automatic Line
Spare Parts: Hammer
Pellet Size: 2mm-12mm
After Warranty Service: Video Technical Support, Spare Parts
Local Service Location: Egypt, Turkey, Viet Nam, Philippines, Peru, Mexico, Spain, Thailand, Japan, Malaysia, Morocco, South Korea, Chile, UAE, Romania, Ukraine
After-sales Service Provided: Free Spare Parts, Video Technical Support
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Wooden case(LCL), Film(FCL)
Supply Ability: 15 Set/Sets per Quarter Farm machinery floating fish feed machine
Product Description
Product Description

food fish pellet machine
Fish feed, as the name suggests, is feed fed to fish.

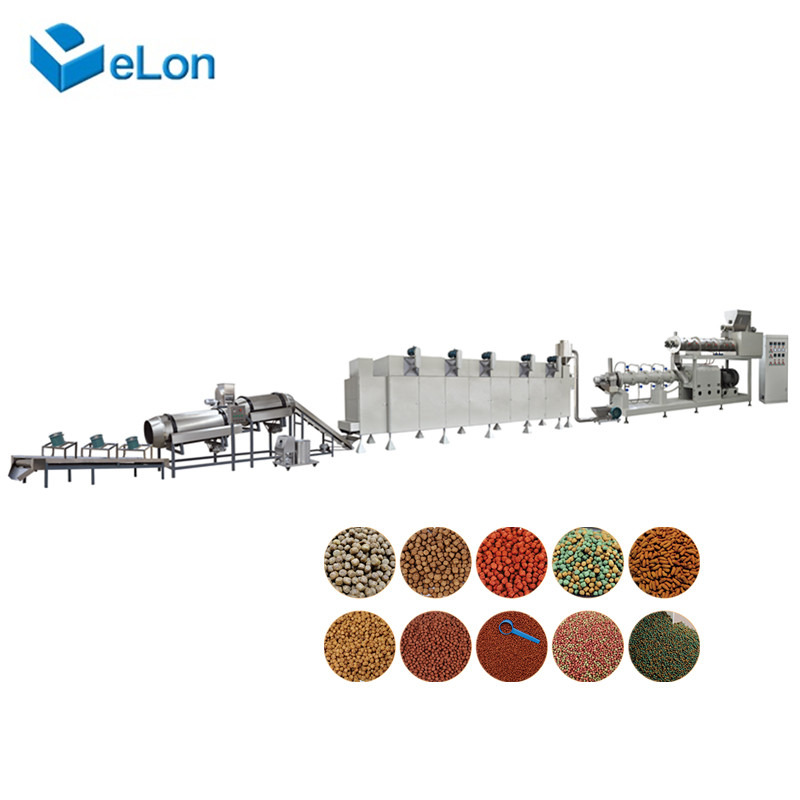

1.food fish pellet machine Description  Shrimp feed production line can produce different shapes food for cattle, sheep, dog, fish or cat etc. Through the pretreatment of the fodder, it can reduce loss of nutrition and advance the protein ratio. So the fodder will be digested easily by animals. 2. Raw materials Adopts corn, soya, bean meal, vegetables, bone meal, meat meat etc.It can produce fish food,cat food,dog food, bird food and so on.  3. Products  Different shapes are made by adjusting the dies from extruder 4. food fish pellet machine Flow chart Mixing system---Extrusion system----Drying system----Flavoring system--Packing system
5.food fish pellet machine materials All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.

  • Puffed feed extruder

Input Voltage:380V/50HZ Installed Capacity:90kw Output:8000Kg/h Equipment Introduction:
Machine consists of feeding system, extruding system, peeling systems, heating system, transmission system, control system. Advanced screw extrusion technology, the use of high temperature and pressure curing and extrusion molding the material, once completed. Host with frequency control, to ensure the stability of the production process. Product color, species diversity, looks beautiful, natural and realistic, delicate texture, materials widely used.
gas/electric drying machine
Input Voltage:380V/50HZ Installed Capacity:10m3/h 120kw/h Output:8000Kg/h Equipment Introduction: Produced semi-finished products for dry and dehydrated with drying device，a certain amount of heating device installed inside the oven , use of electric heating to dry . The most commonly used for extruded products desiccation device.

  • Feed seasoning machine

Input Voltage:380V/50HZ Installed Capacity:10m3/h 120kw/h Output:8000Kg/h Equipment Introduction: Used to adjust the taste, flavor and seasoning injector with single drum
Detailed Images

Double extruder

The screw material of the machine is And nitriding treatment, so as to increase the screw wear resistance and hardness. Make the
screw more durable
The screw is nitrided to extend its service life
food fish pellet machine

Extruder barrel

The machine is heated by an electric heating ring on the outside of the barrel, and is divided into three heating zones with three
temperature controllers to control the temperature. The barrel is made of hard carbon steel and treated with boiling and boiling
black to prevent oxidation, thus increasing its wear resistance.

Control cabinet

equipment through different control cabinets. Control cabinet can be used according to the customer's local needs of different brands of electrical components and inverter.
The original parts of the electrical right use delixi brand You can also use Siemens appliances or ABB brands according to customer requirements
Size Information
Model
DC56 TWIN SCREW EXTRUDER LINE
DC65 TWIN SCREW EXTRUDER LINE
DC70 TWIN SCREW EXTRUDER LINE
DC85 TWIN SCREW EXTRUDER LINE
Installed capacity
56KW
67kw
104kw
100kw
Real powe
35KW
43kw
82kw
90kw
Capacity
35KW
120-150kg/h
180-240kg/h
350-500kg/h
Sample
Packing&Shipping
After Sales Service
Company Introduction
Shandong decao Machinery & Equipment Co., Ltd. is a high and new technology enterprise integrating technology, manufacture and trade.We have devoted ourselves to developing, manufacturing and trading food machinery for more than 10 years. Main production line: ★Biscuit production line.★Instant noodles production line.★Breakfast cereal corn flakes production line.★Core filling snacks/puffed snacks production line.★Crispy chips/Sala/Bugles puffed snacks production line.★Doritos Tortila corn chips production line.★Nutritional/Artifical rice production line.★Nutritional powder/Modified Starch production line.★Bread crumb production line.★Fried pellet snacks production line.★Macaroni production line.★Potato chips,French fries production line.Pet food production line.★Aquatic feed production line. Main single machine:★Double/Single screw extruder★Mixer★Screw hoister★Pulling and cutting machine★Mutifunctional forming machine★Deep fryer★Continous Fryer ★Oven/Dryer ★Conveyor ★Flavoring/Seasoning machine.

contact

Jack Manager Skype :bestsales-jack QQ:1442140951 Wechat id :bestsales-jack phone/whatsapp:0086-15254187803 E-mail:delon-machinery@hotmail.com
http://cndelon.en.alibaba.com/ http://www.jndelun.com/ Add:No.002 Baicai Road , Wangsheren , Licheng District , Jinan, china.
FAQ
1.How is the machine guarantee time?
A:One -year without normal wear parts. Machine itself life guaranteed.

2.How is Installation &Adjustment of the equipment?
A:we will provide experienced engineer to buyers factory to installation and training,totally solve the problem for our
customer,so don’t worry for the workers operation.

3.Can you design new mold for us if we have good idea?
A:Yes,we can design new mold for you according to your original market needs.

4.Can you help us to design the whole line if we provide the layout of our factory?
A:Yes,we can provide you machine layout at your factory after get your factory details.
