Specifications

Condition: New

Raw Material Processed: Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks

Pellet Diameter (mm): 2.5 - 10

Output (kg/h): 900 - 1100 Kg/h

Dimension(L*W*H): 80*85*116 Cm

Power (kW): 50-70 HP

Warranty: One Year

Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Energy & Mining

Key Selling Points: Easy To Operate

Weight (KG): 420 KG

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video Outgoing-inspection: Not Available

Warranty Of Core Components: 1 Year

Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Pressure Vessel, Gearbox

After-sales Service Provided: No Overseas Service Provided

Assort Tractor Power: 50-70 HP

Die Diameter: 400 Mm

Die Hole Specification: 2.5-10mm

Saw Dust Capacity: 400-550 Kg/h

Feed Capacity: 900-1100 Kg/h

Color: As Request

Name: Wood Pellet Making Machine

Usage: Making Wood Pellets Animal Feed Pellets

Spare Parts: Ring Die+ Rollers

After Warranty Service: Video Technical Support, Online Support, Spare Parts

Local ServiceÂ Location: United Kingdom, United States, Italy, France, Germany, Thailand, Australia

Showroom Location: United Kingdom, United States, Italy, France, Germany, India, Russia, Thailand, Chile, Australia

Certification: CE ISO

Basic Infomation

Certification: CE ISO

Payment & Shipping Terms

Packaging Details: Wooden case 2020 new products with competitive prices agriculture biomass pellet mill for making wood pellet

Supply Ability: 2000 Set/Sets per Year

Product Description

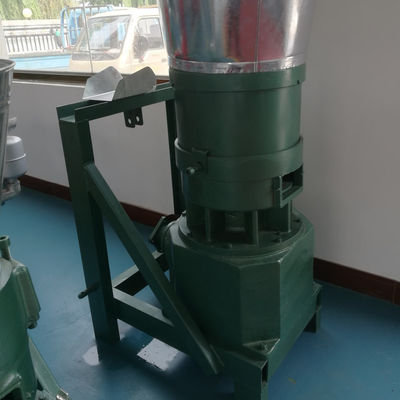

2020 new products with competitive prices agriculture biomass pellet mill for making wood pellet

Model	Power	Saw Dust Capacity	Feed Capacity	Packing Size
KL120P	6-10 HP	40-60 kg/h	60-100 kg/h	574176 cm
KL150P	6-12 HP	50-90 kg/h	90-120 kg/h	574476 cm
KL200P	10-18 HP	110-140 kg/h	200-300 kg/h	7756102 cm
KL230P	18-28 HP	150-190 kg/h	300-400 kg/h	7756102 cm
KL260P	28-45 HP	220-280 kg/h	400-600 kg/h	7756115 cm
KL300P	45-55 HP	300-350 kg/h	600-800 kg/h	7780116 cm
KL360P	50-60 HP	300-380 kg/h	700-900 kg/h	7785116 cm
KL400P	50-70 HP	400-550 kg/h	900-1100 kg/h	*7785116 cm*

1.This series machine can be powered by tractor(PTO). 2.We adopt the new design of direct connection of motor shaft and he main shaft that overcome the loose defect of belt connecting as long time using. 3.High accuracy gearbox and high output. 4.It is widely used in large,middle, small scale aquatic. food and feed processing factory,livestock farm, poultry farm, individual raisers, middle and small farm. 5.International advance steam fittings and imported pressure reduction valve. 6.Flat die is made with international advanced equipment for long lifespan. 7.Drive with heavy duty gearbox, which can produce continuously in most adverse condition.

1. Since this diesel engine powered pellet mill is suitable for farmers, so the raw materials for wood pellet mill are usually easy to get. Sawdust, shavings, rice husk, cotton stalk, cotton seedskins, weeds and crop stalks and other plant wastes can all be pelletized into high quality pelletsby using the diesel engine driven wood pellet mill. 2. The pellets made by the machine are mainly used as fuels for stove, furnace and other heating equipments. In addition, the wood pellet mill can also make pellets for animal bedding and animal feed.

Home pellet stove is widely used in Europe and many other places in the world. It is an environment-friendly method to keep warm and cook. Pellet stove uses less natural resources as its fuel is generated from waste or recycled materials. The fuel it used can be made at home. Here are a few tips for you to spend less money making the stove fuel if you choose a pellet stove for heating.

You have to prepare raw materials along with a flat die pellet mill which is used to press the materials into the needed fuel for home. There are a wide variety of raw materials that you can use to make the fuel, such as fruit pits, different types of grass, corn cobs, barley star, shelled corn, wheat, paper, etc. Your choice of materials decides the heating or cooking effect, thus you need to look up the kind of stove to properly match the pellet fuel.

Detailed Images

1. With reasonable design and compact structure. The PTO wood pellet mill is designed to be connected and disconnected easily. 2. Easy and convenient to use. Since the machine can connected with the tractor, so it is easy to move the PTO pellet mill . 3. Low energy consumption and high efficient. Since the PTO wood pellet mill is powered by the tractor, it can work continuously and use less energy. 4. With a competitive price. Since the PTO wood pellet mill is without power engine, so the price the lower and the farmers can take advantage of their tractors to be used as the power. 5. Can customized according your requirement. We have 8 different models of PTO wood pellet mill in different size and production capacity, we can offer you PTO pellet mill according to your requirement.

Packing&Shipping

Strong plywood case as exported standard, if your order is big we suggest shipping by container, we will calculate the total volume of your order and saving shipping cost for you.Shipping: By sea, By air; Express (DHL/FedEx; Railway; Highway)

After Sales Service

(1)We have produced the wood pellet mill for more than 20 years. (2)Our clients are all over the world, main in European. (3)We all have passed the CE, ISO, SGS. (4)We have better service attitude than most of Chinese suppliers.

Company Introduction

Laizhou Chengda Machinery Co., Ltd. is one of the most earliest manufacturer of wood /feed machinery in China. With a wide range, good quality, favorable prices and stylish designs, our products are extensively used in agriculture andother industries. Please feel free to visit our production facility in LaizhouShandong,we sincerely welcome tours!

FAQ

1. How to order? After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the payment. For single set, your machine can be ready within 30-45 days after we getting the payment, we will send to the port and deliver to you by sea. 2. Related products? KL120P,KL200P,KL230P,KL360P 3. How to get to your factory? Our company is located in Sanlihezi Village, Wenfeng Road, Laizhou, Shandong province, near Qingdao, if you arrive in Qingdao Liuting Airport, we can drive to Qingdao to pick you up to our factory. 4. How long is your warranty period? One year. 5. How does your factory do quality control? Our factory has gained CE certificate and ISO certificate. " Quality is priority" we always pay great attention on quality controling from the begining to the end.
