Produce Feed For Poultry Chicken 1-2t/H Small Food Processing Machine Bird Feed Animal Aquaculture Feed Pellet Mixer Processing Line

1 Set
MOQ
$46,000.00(>=1 Sets)
Price
Produce Feed For Poultry Chicken 1-2t/H Small Food Processing Machine Bird Feed Animal Aquaculture Feed Pellet Mixer Processing Line
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Farms, Home Use, Retail
Showroom Location: Nigeria
Condition: New
Type: Feed Pellet Machine
Voltage: 380V/50Hz
Dimension(L*W*H): 12x4.5x13.5m
Weight: 3200 Kg
Warranty: 1 Year
Key Selling Points: High Productivity
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine
Max. Capacity: 1-2 Ton/h
Product Name:: Equipment Of Livestock Feed Production
Pellet Forming Rate:: 98%
Installation:: Offer Manual Book And Engineer's Guidance
Pellet Mill Bearing:: NSK Or SKF
Size Of Finished Pellet: 1.5-12mm
Application:: Produce Feed For Poultry,chicken,duck,rabbits,pig
Main Equipment: Feed Crusher, Feed Mixer, SZLH250 Pellet Machine
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Nigeria
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Plywood case
Supply Ability: 500 Set/Sets per Month
Product Description
Product Description

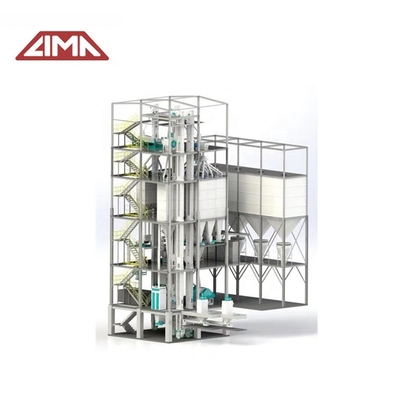

Chicken Food Making Processing Machine Chicken Feed Making Machine Line

complete animal food production plant include feed hammer mill, feed mixer, feed pellet machine,cooling machine, packing system. it can make all kinds of animal feed pellet. usually for poultry feed, cattle,cow,sheep. etc.


Advantages of Feed Pellets Made by our livestock feed production equipment
Decreased ingredient segregation
Decreased feed wastage
Easy storage and transportation
Improved palatability
Reduced selective feeding

Technical Parameters
 UNIT MACHINE
No.
Product
type
Power(KW)
Raw materials receiving and crushing and mixing system
101
Screw Conveyor
TSLL16
2.2
102
Hammer Crusher
SFPZ56*20
15
103
 Mixer
SHW1.0
7.5

Pelleting system
201
Bucket Elevator
TDTG36/18
2.2
204
Pellet Machine(include control box)
SZLH250
11*2+2.2+0.75

Cooling system
303
Airlock
GFY250
0.75
304
Counter Flow Cooler
SKLN11
0.75
305
Air Blower
4-72-4A
5.50
308
Pellet crusher
SSLG15*80
5.5
309
Manual Three-way
SD20*20
Auxiliary System
402
Rotary Screener
SFJH80*2d
1.5
Auxiliary System
601
Boiler
Detailed Images

Feed Pellets Processing Technology
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing

Equipment Related to poultry feed pellet production line machine
Feed Grinder →Feed Mixer → Feed Pellet Mill → Counter flow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine

Grain Crushing and Mixing Machine

 Crusher
Adopts regrinding crushing technology, widen the screen in 360°,the materials can be crushed averagely. When the size of the materials is smaller than the holes in the screen, the materials can be discharged quickly.
 Mixer
Coefficient of variation is less than 5%, the mixing time is 5 minutes, then the materials can be discharged form one side. There is no dead corner when mixing, and this machine is easy to maintenance.

Cooling Machine

Counter Flow Cooler
Adopts counter-flow cooling technology, the pellets can be cooled averagely and no crack. The cooling time and volume can be adjusted, and there are no residues by discharging.

Roller Crumbier

Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones.

Roll type feed pellet crumbler is the equipment for feed pellet crushing.

Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc.
