Make Pellets Plastic Extruder Granulator Machine For Biodegradable Materials Biomass Product

1.0 Sets
MOQ
Make Pellets Plastic Extruder Granulator Machine For Biodegradable Materials Biomass Product
Features Gallery Product Description Request A Quote
Features
Specifications
Plastic Processed: Lldpe, ABS, PLA
Condition: New
Output (kg/h): 100 - 350 Kg/h
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Type: Granulating Production Line
Screw Design: Single
Voltage: 220V/380V/460V
Dimension(L*W*H): OEM
Power (kW): 90-132
Weight: OEM
Warranty: 1 Year
Showroom Location: Turkey, Brazil, Russia
Applicable Industries: Manufacturing Plant, PLA/PBAT/Statch
Screw Diameter (mm): 100, 100
Screw L/D Ratio: 15-25, 15-25
Application: Make Granules
Raw Material: PLA,PBAT,PHA,PHA,ect
Processing Type: 100% Biodegradation Granulation
Processed Material: STARCH
Pelletizing Type: Hot Die Face Cutting
Capacity: 300kg/h
Motor: SIEMENS Brand
Contactor: Schneider Brand
Temperature Controller: Ormon
Extruder Type: Single Stage Extruder
After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Turkey, Brazil, Russia
Certification: CE,ISO9001
Basic Infomation
Certification: CE,ISO9001
Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 100 Set/Sets per Year
Product Description



yinuo

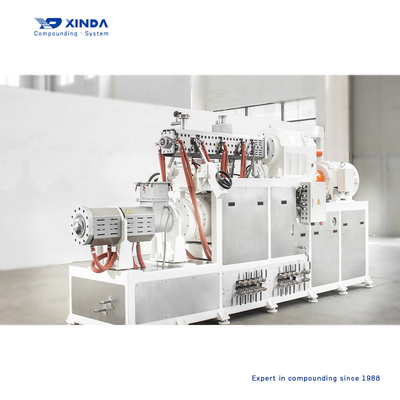

SJW(C) Reciprocating Kneading Compounder Extruder

The cascade type of Co-Kneader compounding line is consisted of Co-Kneader main machine and another large size single screw extruder. The stock will fall into the extreing single screw after fully dispersed and distributed in Co-Kneader. It will ensure the materials are processed at a lower temperature with the stable extruding The wholeprocess is divided into two parts.

Co-Kneader is in charge of kneading while the secor single screw is focusing on extruding The cascade system is very helpful to achieve the better final quality.

Application:

--PVC compounding pelletizing

--Shoe sole compounds

--Wire cable compounds(XLPE, HFFR, Semi-conductive compounds, etc)

--Concentrated color masterbatch

--Rubber, Final-batch rubber, Master batch, Mixed compound

--Elastomers

--Bio-degradable compounds

--Metal injection molding

Model
SJW-45(C)
SJW-70(C)
SJW-100(C)
SJW-140(C)
SJW-200(C)
WKS-120(C)
Screw Diameter
45
70
100
140
200
120
Length Diameter Ratio
20-25
20-25
20-25
20-25
20-25
9-15
Main Motor Power
15-30
55-75
90-132
160-300
350-550
250-280
Second-stage Screw Diameter
60
120
150
200
280
220
Second-stage
L/D
7-8
7-8
7-8
7-8
7-8
7-8
Second-stage
Power
15-22
37-45
55-75
90-110
132-160
90-132
Max.Screw Speed
500
500
500
500
500
500
Reference Output
40-70
150-250
300-500
800-1200
1900-3600
1800-2500
