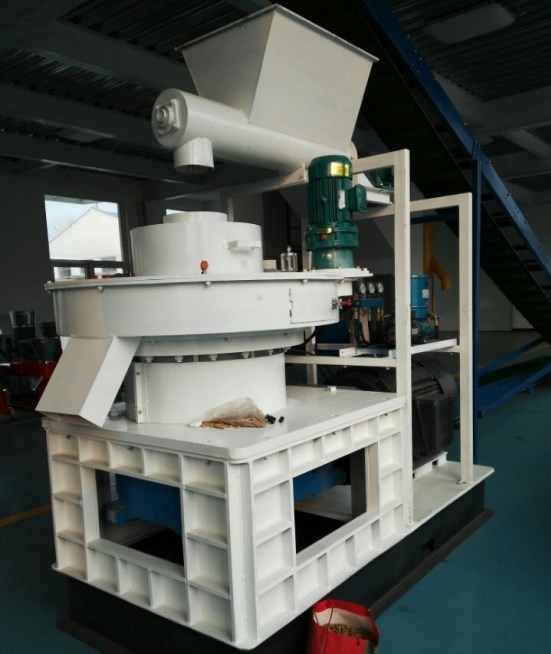

Make Biomass Pellets Production Wood Pellet Making Machine Line

1 Set
MOQ
$15,600.00(1 - 9 Sets) $14,000.00(>=10 Sets)
Price
Make Biomass Pellets Production Wood Pellet Making Machine Line
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Raw Material Processed: Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks
Pellet Diameter (mm): 2.5 - 12
Output (kg/h): 800 - 1000 Kg/h
Voltage: 380V
Dimension(L*W*H): 252*121*200cm
Power (kW): 75
Warranty: 1 Year
Applicable Industries: Farms, Home Use, Retail, Construction Works
Key Selling Points: Energy Saving
Weight (KG): 3200 KG
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Gearbox
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Application: Make Biomass Pellets
Color: Customer's Request
Capacity: 800-1000 Kg/h
Pellet Diameter: 4-10mm
Pellet Length: 5-50mm
Weight: 3200kg
Power(W): 75kw
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: United States, Italy, France, Germany, Saudi Arabia, Morocco, UAE, South Africa
Showroom Location: None
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Plywood box
Product Description
Product Description

Product Application

The wood pellet making machine line is used for pressing material such as grass, grain, firewood, stalk, tree branches, wood meal, fruit hull, palm and tailing of cotton plant, and widely used for recycle of livestock farms, biomass fuel plant, power plant, wood processing plant, fertilizer plant, chemical plant, food plant and cotton plant.


Specification of wood pellet making machine line:

Model
Power
Capacity
N/G weight
Packing size
TOPS400
37kw
400-600kg/h
1500/1600kg
164*65*174cm
TOPS400
45kw
500-700kg/h
1900/2000kg
185*74*174cm
TOPS450
55kw
600-800kg/h
3000/3100kg
242*121*195cm
TOPS450
75kw
800-1000kg/h
3200/3300kg
252*121*200cm
TOPS450
90kw
900-1100kg/h
3500/3600kg
278*132*210cm
TOPS560
110kw
1100-1300kg/h
4000/4100kg
278*152*210cm
TOPS560
132kw
1300-1500kg/h
4100/4300kg
288*132*210cm

Main Features

1.The latest improved model specially for making wood pellets

2.Unique design for motor and gear box

3.New roller rotating instead of previous die rotating

4.More than 20% output capacity increase than old models

Certifications
Detailed Images

Machine Parts

Name: roller

Brand: TOPS

Original: China

This roller wheels made by alloy steel. It's wearing parts, life time is about 800 hours.

Main Features

Name: Matrix/ flat die
Brand: TOPS
Original: China
This ring die made by stainless steel, also is wearing part, life time is about 1000 hours. The hole diameter you can choose from 4mm, 6mm, 8mm and 10mm.

Our Service
Packing & Delivery
Packaging
Size
252*121*200cm
Weight
3300kg



Packaging Details
The normal package is wooden box, can be export directly.
